Description

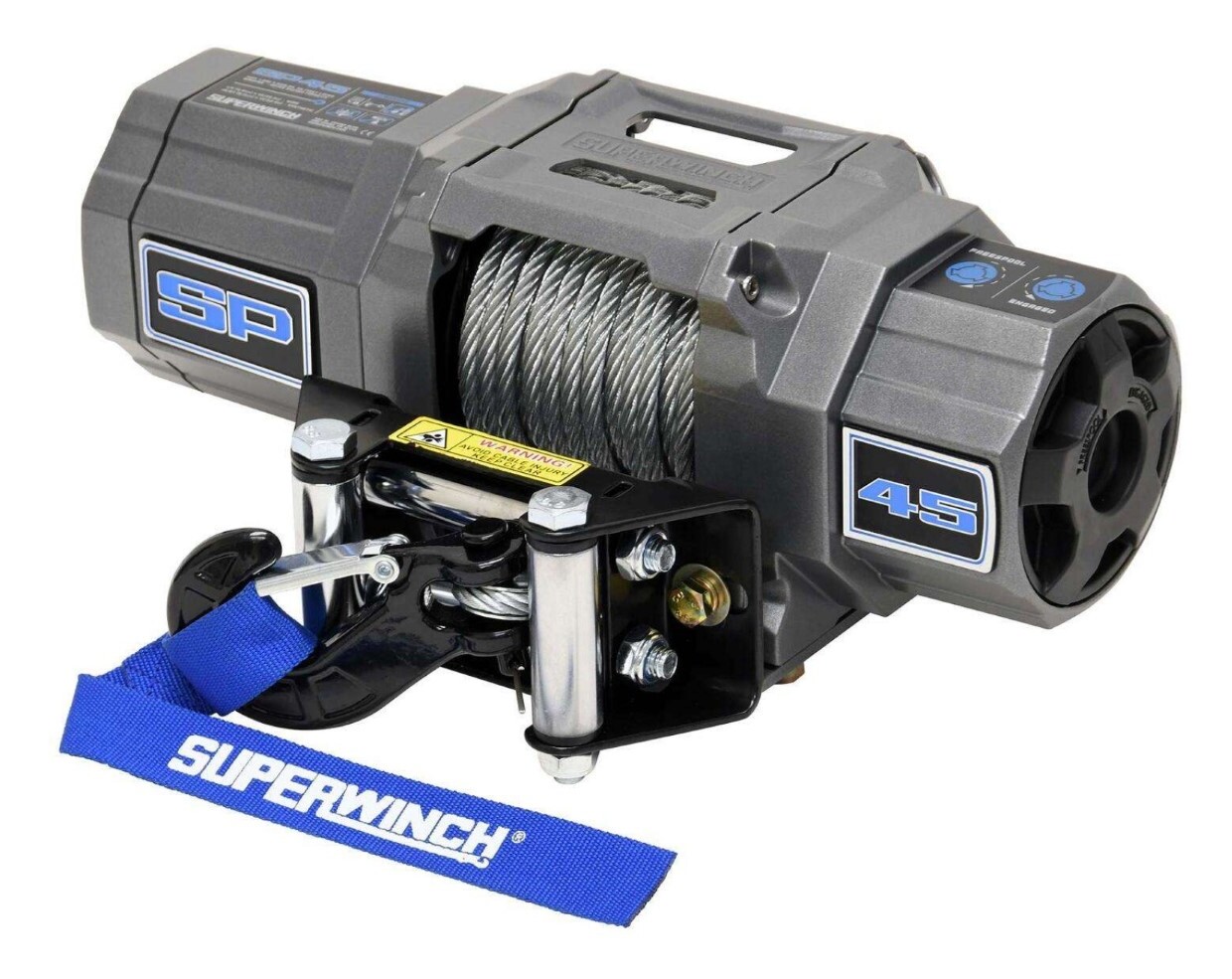

Superwinch SP45 Powersports 4500lb Winch
The SP 45 Powersports Winch is expertly crafted for ATV and UTV use, boasting a robust 4,500-pound pull rating. This winch is built for performance across sand, mud, and work projects with its durable 40-foot steel wire rope. It features a high-powered 12-volt 1.8 HP permanent magnet motor with a 3-Stage planetary gear system with a 198:1 gear ratio. The design includes an ergonomic twist-lock clutch for secure load management. Additionally, it comes equipped with convenient dash-mount control switches, a wired remote for easy operation, and a patented drum light for enhanced visibility.
Specifications:
- Horsepower: 1.8hp, permanent magnet motor 12V DC
- Fairlead: Stainless steel 4-way roller
- Rated Single Line Pull: 4500lbs
- Rope Length: 15/64″ x 40 ft (6.0mm x 12.2m)
- Rope Material: Steel wire
- Patented LED lighted drum
- Brake System: Full load holding automatic brake
- Clutch: Ergonomic twistlock
- Color: Graphite
- Dimensions: 19.29in L × 11.02in D × 9.44in H (490mm L × 280mm D × 240mm H)
- Finish: Powder coated graphite
- Gear Ratio: 198:1
- Gear System: 3-stage planetary
- Frame Material: Steel
- Mounting Bolt Pattern: 4.88in × 3.0in (124mm × 76mm)
- Net. Weight: 33 lbs
- Remote Control: Dash-mounted control switches and handheld remote control
- Warranty: Limited lifetime mechanical / 3 year limited electrical
- Winch Hook: 1/4in, clevis pinned, latched
- Includes all pictured hardware
